Designed for absolute reliability in commercial and saturation diving, the SEAM Air Control Panel provides unparalleled gas control through rugged engineering. This command center features dual air supply lines for maximum uninterrupted air supply.

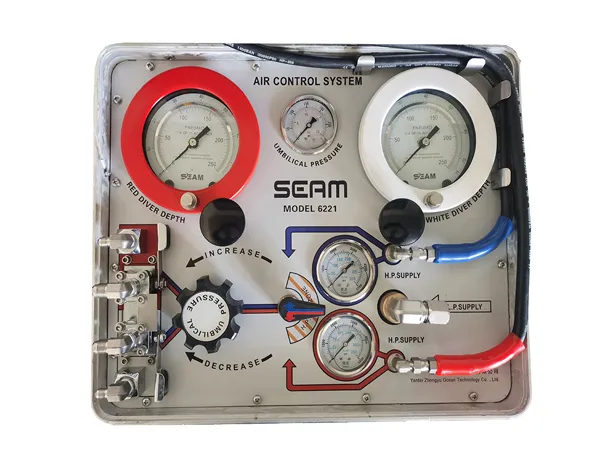

The panel's intuitive interface includes a pressure gauge, depth gauge, regulator, and an intercom-compatible audio port, a key component of our professional underwater air supply system, making it easy for divers to coordinate with the surface. Protect every dive where there's no room for error.
| Model | SEAM6221 Air Control Panel |
| Diver Capacity | 2 divers |
| High-Pressure System | Gauges: 0-5000 PSIG (±1.5% accuracy) |
| H. P. Supply Max. 3500 P.S.I. (240 Bars) using the yoke/din | |
| Low-Pressure System | Crossfeed:redundant gas interconnect valves |
| Low Pressure Supply Max. 225 P.S.I(15.5 Bars) | |
| Regulator Output | 115-225 PSI (8-15.5 bars) |
| Relief Valve | Set at 260 psi (17.9 bars) |
| Umbilical Pressure Gauge | 0-300 P.S.I. (0-20 Bar) |
| Depth Monitoring | Pneumatic Gauges: 0-250 FSW / 0-75 MSW |
| Accuracy: ±1% full scale | |
| Valves: Chrome-plated brass | |
| Maximum recommended user depth | 130 FSW (40 meters). |
| Communication | Unit: SEAM2620 |
| Protocol: 2-wire/4-wire full duplex | |
| Power: 90-264 VAC or 12VDC battery,Will accept external 12 volt source. | |
| Noise Suppression: Auto-gain + DSP filtering | |
| Output: 10W RMS (4Ω load) | |

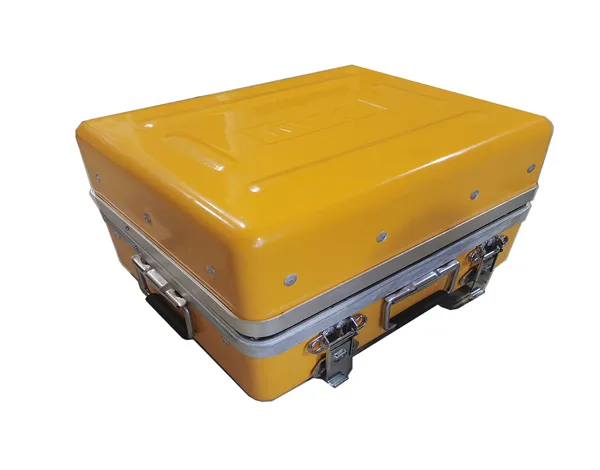

| Enclosure | Pressure-laminated fiberglass (International Yellow) w/ stainless steel hardware |
| Ingress Rating | IP66/IP68K (high-pressure water jet / 500m immersion proof) |
| Dimensions | 21" W × 17.5" D × 11.8" H |
| Weight | 53 lbs(24.2 kg) |
| High-pressure hoses | High-pressure hoses (2 required) included in base package. |
| Selector Valve Handle | Used to choose either one of the air supply cylinders. Individual cylinders may be changed out with no interruption of the dive. |
| High Pressure Inlet Fittings | #6 JIC Male |
| Low Pressure Inlet Fittings | #8 JIC Male |
| Diver's Air Outlet Fittings | #6 JIC Male |
| Diver's Pneumo Outlet Fittings | #4 JIC Male |
Rugged construction with a fiberglass shell and aluminum alloy frame and stainless steel panel.
Patented pressure regulator prevents full shutoff when supplying air, ensuring diver safety.
Dual air supply lines allow two divers to share a single air line, with flexible switching between them.

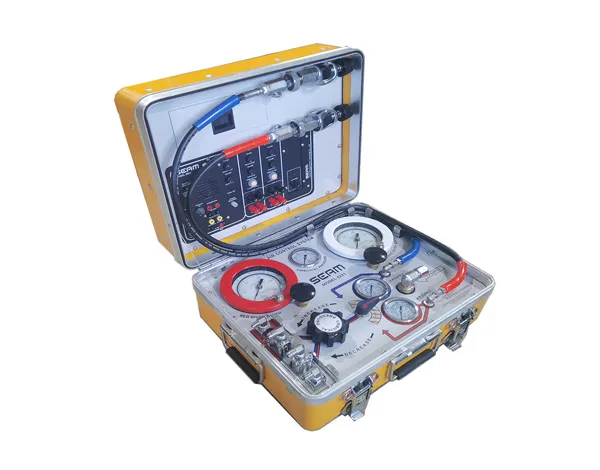

An optional communication panel enables real-time communication between operator and diver.
Internationally compatible connector dimensions allow interchangeability with international brand products for rapid field deployment.
High-precision depth gauge to accurately obtain diver's position information.
