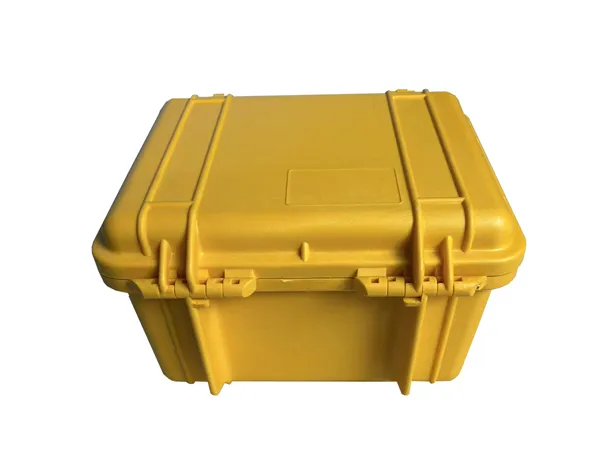

The SEAM8611A Single diver communication sets the standard for hardwired underwater communication with unmatched versatility and power. Designed as a portable single-diver system, it delivers 20 watts of audio power per channel, ensuring crystal-clear voice transmission even in challenging subsea environments. Its rugged, high-impact-resistant housing protects advanced electronics.
Engineered for endurance, the SEAM8611A Single diver communication features an intelligent charging circuit that allows indefinite connection to power without battery damage. Unique among dive communicators, it includes an MP3 input jack, enabling divers to enjoy personal music during extended operations—a breakthrough in diver comfort and morale, a standout innovation from diving equipment china.

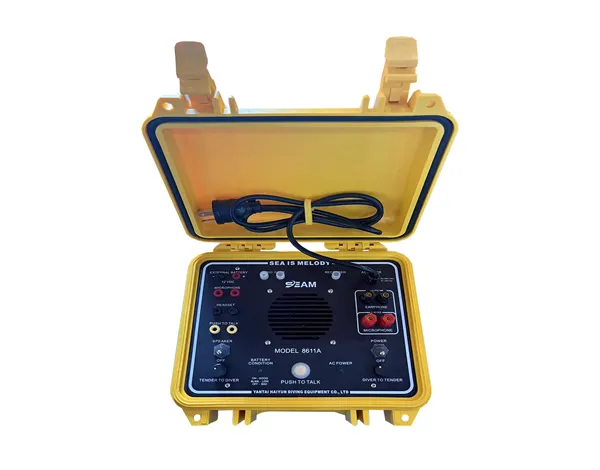

All connections are side-mounted and it supports both 2-wire and 4-wire configurations for flexible integration. This system redefines reliability for commercial diving, underwater construction, and salvage missions.
Compact yet powerful combines cutting-edge functionality with the resilience demanded by professional divers worldwide.
| Model | SEAM8611 |
| DC Power Supply Voltage | 12 VDC nominal, (9 volts minimum - 16 volts maximum) |
| Operational Supply Voltage | 9VDC-18VDC |
| AC Power Supply Range | 90-264 VAC, 50-60 Hz |
| Sensitivity (Input) | 1.5mV |
| Maximum Output Power (4 Ohm Load, 14 VDC) | 20W |
| Battery capacity | 9Ah |
| Panel | Powder Coated Stainless Steel |
| Enclosure | Water sealed box |
| Size Length | 270mm |
| Size width | 250mm |
| Size height | 180mm |
| Weight | 4.9kg |
| Battery level display function | No |
Dominant 20W Audio Output: Ensures intelligible speech transmission through demanding subsea conditions.
Intelligent Dual-Power Operation: Field-ready with gel-cell batteries; smart management prevents overcharge during extended use.
Integrated Diver Entertainment Port: MP3 input for morale-boosting audio during operational downtime.
Pro-Grade Connectivity: Side-mounted ports and 2-wire/4-wire support, medical-grade isolation transformers, and tape-recording capability.

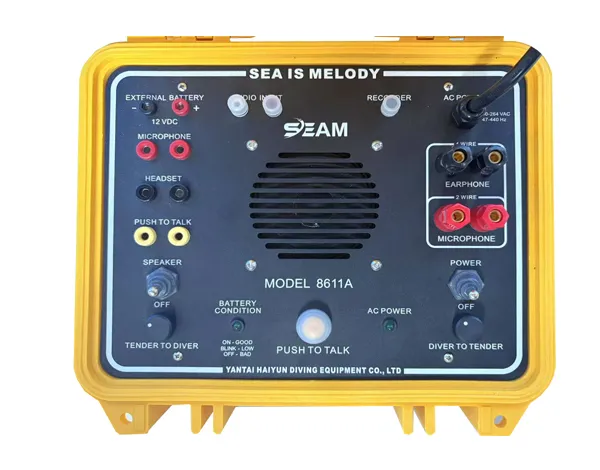

All jacks are on the panel.
