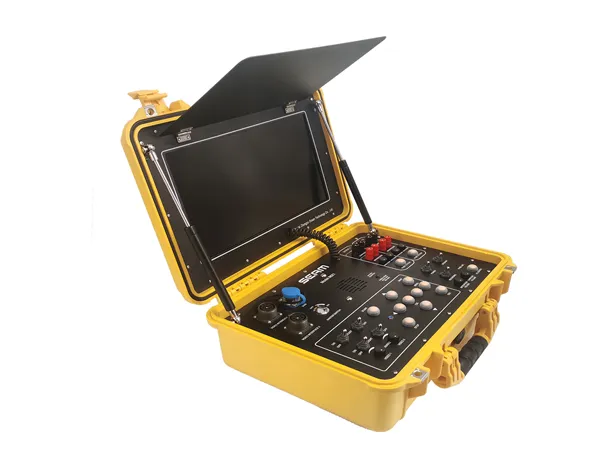

SEAM8622 Professional Diving Video Systems (CCTV) for Underwater Operations.
SEAM8622 Diving Video Systems (CCTV) revolutionize underwater inspection, rescue, and commercial operations with cutting-edge imaging and seamless integration. Inspired by industry benchmarks like AMRON’s rugged designs, our systems deliver crystal-clear video feeds even in low-visibility environments, a defining advantage of our professional underwater cctv system. Equipped with high-resolution CMOS sensors and precision optics, they capture minute details for pipeline surveys, marine research, and salvage missions. The IP68-rated housing withstands depths up to 50 meters, while adaptive lighting illuminates dark subaquatic zones. Integrated with sonar technology and communication modules, our CCTV supports real-time data sharing and multi-diver coordination—mirroring AMCOM series’ reliability. Ideal for industrial, scientific, and emergency teams seeking uncompromised performance beneath the waves.

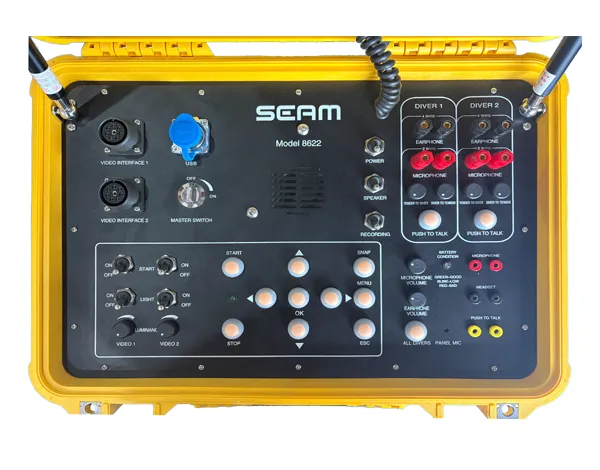

| Console Model | SEAM8622 |
| Features | Complete Dual Diver HD video system with Dual communication |
| Size | 20"W x 15.9"D x 7.3" H(49x 39x 18cm) |
| Weight | 24lbs. (11kg) |
| Power | 110-240 VAC; 50/60 Hz.; 350 W max |
| Light Control | Variable control 0 - 100%. |
| Monitor | 15 in. ~ 1600 nit, 16:9 HD LCD color w/audio |
| Safety | Low voltage output to diver |
| Connections | Front panel connections for umbilicals |
| Recorder | 64GB High-speed USB Flash Drive |
| Light | |
| Power | 0-30 W |
| Color Temperature | 3300/5000 |
| LED light | 2500 lumens |
| Input Voltage | 24 VDC |
| Diameter | 1.62 in. (41 mm) |
| Length (Excluding Connector) | 3.94 in. (100 mm) |
| Weight air | 0.48 lbs. (0.22 kg) |
| Weight in Seawater | 0.18 lbs. (0.08 kg) |
| Depth Rating | 6,560 ft. (2000 m) |
| Housing Material | Anodized Aluminum |
| Light Control | Variable control 0 - 100%. |
| Camera | |
| CCD | ½" Sony Sensor |
| Pixel | PAL: 1920*1080 |
| TVLine | 1080P |
| Signal system | PAL |
| Minimum illumination | 0.001LUX /F1.2 |
| Operating Voltage | DC12V |
| Operating Temperature | -20ºC--60ºC |
| Horizontal FOV (in Water) | ~ 80° |
| Diameter | 1.62 in. (41 mm) |
| Length (Excluding Connector) | 5 in. (127 mm) |
| Weight Air | 0.63 lbs. (0.28 kg) |
| Weight in Seawater | 3.1 oz. (0.09 kg) |
| Depth Rating | 6560 ft. (2000 m) |
| Cable | |
| Conductors | 12 ea. #20 awg; 1 RG-59 Coax |
| Length | 393 ft. (120m) Standard |
| Diameter | 0.49" (12.2mm) |
| Jacket | Polyurethane (green) |
| Breaking Strength | 1,200 lbs. (540 kg) |
Complete Dual Diver HD Video System with two communications.
Ultra-HD video for surface-to-seabed inspection in turbid water.
Depth-Tested Durability: IP68 submersible housing, pressure-resistant to 50 meters.
Integrated Comms & Control: AMCOM-inspired hardwired communication; supports 2/4-wire audio, MP3 input, and team coordination.
Portable & Multi-Power: Rechargeable gel batteries or 12V DC sources for field mobility.
