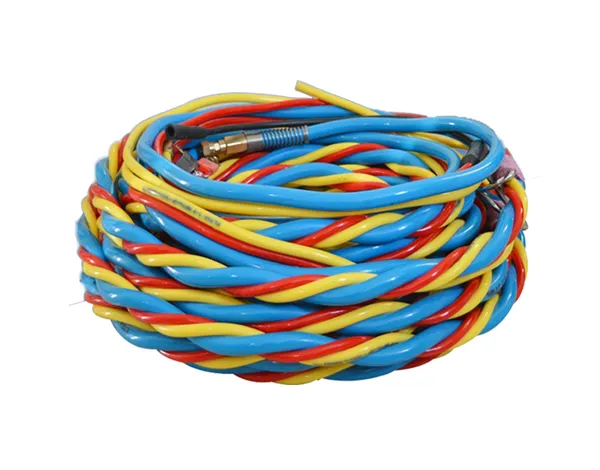

The SEAM Dive Series Umbilical is engineered for professional surface-supplied diving operations where reliability, clarity, and performance are non-negotiable. This streamlined umbilical integrates a high-pressure air hose, a robust communications cable, and a depth hose into a single neutrally buoyant assembly, a featured design of premium diver umbilical for sale, designed to reduce drag and minimize diver fatigue.
Ideal for commercial diving, aquaculture, search and recovery, and scientific research, the SEAM umbilical serves as the critical lifeline, delivering breathable air and crystal-clear communication from the surface support system to the diver. Built to withstand harsh marine environments, it offers exceptional abrasion resistance and durability, ensuring mission success and diver safety dive after dive.
Trust the SEAM Dive Series Umbilical—the definitive choice for professionals who demand uncompromising quality beneath the surface.
| Mobel | UMB003 |
| Composition | Breathing Air Hose |
| Pneumo Hose | |
| Communication Cable | |
| Breathing Air Hose Specifications | Max Working Pressure: 500 PSI / 35 bar |
| Minimum Burst Pressure: 2000 PSI / 140 bar | |
| Nominal Bore: 7.5 mm | |
| Outside Diameter: 17.5 mm | |
| Weight in Air: 210 kg/km | |
| Weight in Sea Water: -44.3 kg/km | |
| Minimum Bend Radius (Static): 42.5 mm | |
| Tensile Rating: 100 kg | |
| Standard Color: Blue | |
| Hose Fitting: #6 JIC | |
| Pneumo Hose Specifications | Max Working Pressure: 400 PSI / 27.5 bar |
| Minimum Burst Pressure: 1600 PSI / 110 bar | |
| Nominal Bore: 5 mm | |
| Outside Diameter: 11mm | |
| Weight in Air: 88.5 kg/km | |
| Weight in Sea Water: -31.8 kg/km | |
| Min. bend radius: 29mm | |
| Standard Color: Yellow | |
| Hose Fitting: #4 JIC | |
| Communication Cable Specifications | Screened Pairs: 2 x 0.5 mm2 |
| Polyester Strength Braid: 500 kg minimum break strength | |
| Red polyurethane outer sheath: 1.7 mm nominal thickness | |
| Weight in Air: 128 kg/km | |
| Weight in Sea Water: 25 kg/km | |
| O.D. mm: 11.0 mm | |
| Standard Color: Red | |
| Total weight | 418.5 kg/km |
Integrated Neutrally Buoyant Design.
Superior Abrasion & Chemical Resistance.
Unparalleled Communication Clarity.
Robust, Kink-Resistant Air Supply.
Easy Maintenance & Deployment.
Customizable Lengths & Terminations.
