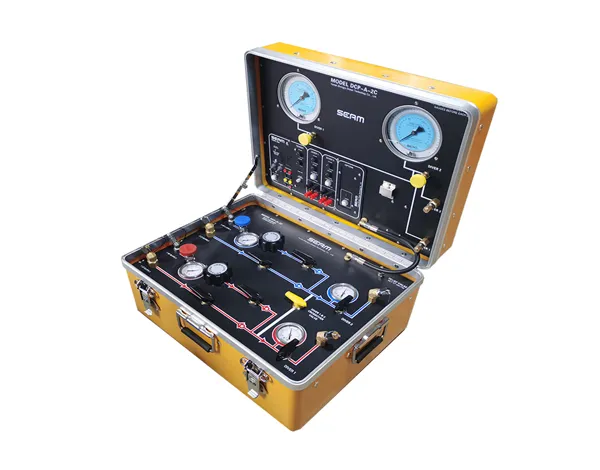

Designed for absolute reliability in commercial and saturation diving, the SEAM Air Control Panel provides unparalleled gas control through rugged engineering. This command center features dual air supply lines for maximum uninterrupted air supply.

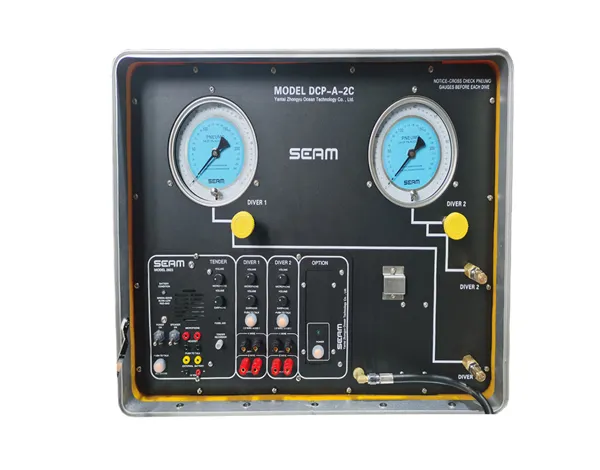

The panel's intuitive interface includes a pressure gauge, depth gauge, regulator, and an intercom-compatible audio port, a vital feature of our professional underwater air supply system, making it easy for divers to coordinate with the surface. Protect every dive where there's no room for error.
| Model | SEAM6222 Air Control Panel |
| Diver Capacity | Independent gas/communication for 2 divers |
| High-Pressure System | Gauges: 0-5000 PSIG (±1.5% accuracy) |
| H. P. Supply Max. 3500 P.S.I. (240 Bars) using the yoke/din | |
| Low-Pressure System | Crossfeed: redundant gas interconnect valves |
| Low Pressure Supply Max. 225 P.S.I(15.5 Bars) | |
| Regulator Output | 115-225 PSI (8-15.5 bars) |
| Relief Valve | Set at 260 psi (17.9 bars) |
| Umbilical Pressure Gauge | 0-300 P.S.I. (0-20 Bar) |
| Depth Monitoring | Pneumatic Gauges:0-197 FSW / 0-60 MSW |
| Accuracy: ±1% full scale | |
| Valves: Chrome-plated brass | |
| Maximum recommended user depth | 130 FSW (40 meters). |
| Communication | Unit: SEAM2620 |
| Protocol: 2-wire/4-wire full duplex | |
| Power: 90-264 VAC or 12VDC battery, Will accept external 12 volt source. | |
| Noise Suppression: Auto-gain + DSP filtering | |
| Output: 10W RMS (4Ω load) | |

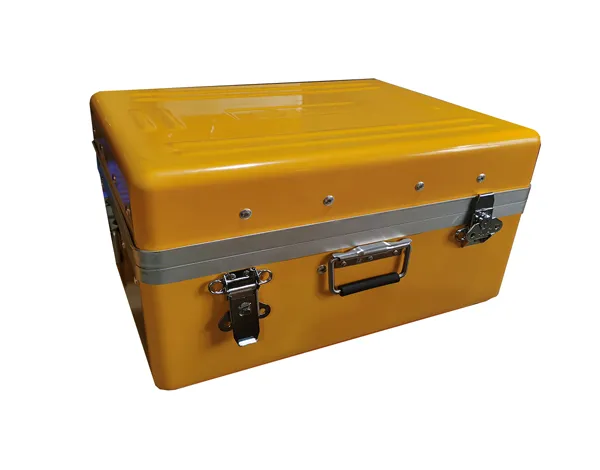

| Enclosure | Pressure-laminated fiberglass (International Yellow) w/ stainless steel hardware |
| Ingress Rating | IP66/IP68K (high-pressure water jet / 500m immersion proof) |
| Dimensions | 24.5" W × 19.5" D × 14" H |
| Weight | 96 lbs (43.7 kg) |
| High-pressure hoses | High-pressure hoses (2 required) included in base package. |
| Redundancy Architecture | Crossfeed valves enable gas sharing between divers during supply failure. |
| High Pressure Inlet Fittings | #6 JIC Male |
| Low Pressure Inlet Fittings | #8 JIC Male |
| Diver's Air Outlet Fittings | #6 JIC Male |
| Diver's Pneumo Outlet Fittings | #4 JIC Male |
Rugged construction with a fiberglass shell and aluminum alloy frame and stainless steel panel.
Patented pressure regulator prevents full shutoff when supplying air, ensuring diver safety.
Independent gas/communication for 2 divers
An optional communication panel enables real-time communication between operator and diver.
Internationally compatible connector dimensions allow interchangeability with international brand products for rapid field deployment.
