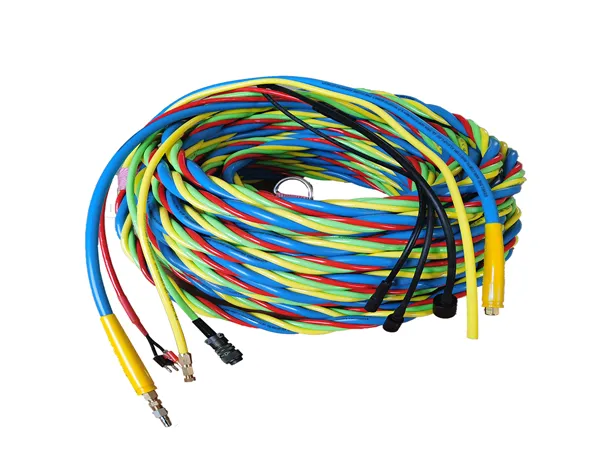

The SEAM Dive Series Umbilical is engineered for professional surface-supplied diving operations where reliability, clarity, and performance are non-negotiable. This streamlined umbilical integrates a high-pressure air hose , a robust communications cable, a depth hose,and a video cable into a single neutrally buoyant assembly, designed to reduce drag and minimize diver fatigue.
Ideal for commercial diving, aquaculture, search and recovery, and scientific research, the SEAM umbilical serves as the critical lifeline, delivering breathable air and crystal-clear communication from the surface support system to the diver, a top-quality option of diver umbilical for sale. Built to withstand harsh marine environments, it offers exceptional abrasion resistance and durability, ensuring mission success and diver safety dive after dive.
Trust the SEAM Dive Series Umbilical—the definitive choice for professionals who demand uncompromising quality beneath the surface.

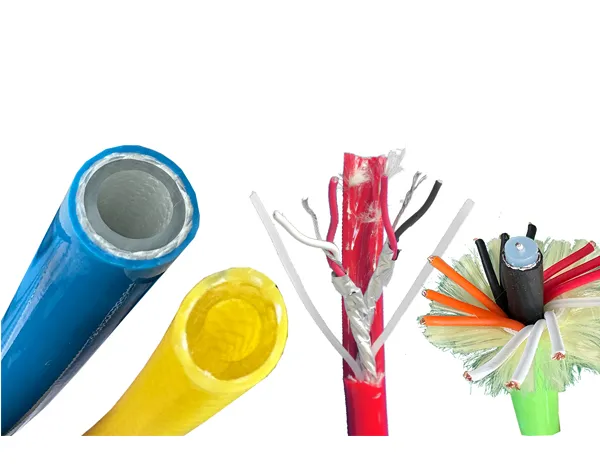

| Mobel | UMB004 |
| Composition | 3/8 Inch Breathing Air Hose |
| 1/4 Inch Pneumo Hose | |
| Video Cable | |
| Communication Cable | |
| 3/8 Inch Breathing Air Hose Specifications | Max Working Pressure: 500 PSI / 35 bar |
| Minimum Burst Pressure: 2000 PSI / 140 bar | |
| Nominal Bore: 3/8 inch / 9.5 mm | |
| Outside Diameter: 18.5 mm | |
| Weight in Air: 257 kg/km | |
| Weight in Sea Water: -57.3 kg/km | |
| Minimum Bend Radius (Static): 44.5 mm | |
| Tensile Rating: 100 kg | |
| Standard Color: Blue | |
| Hose Fitting: #6 JIC | |
| 1/4 Inch Pneumo Hose Specifications | Max Working Pressure: 400 PSI / 27.5 bar |
| Minimum Burst Pressure: 1600 PSI / 110 bar | |
| Nominal Bore: 1/4 inch / 6 mm | |
| Outside Diameter: 12.2 mm | |
| Weight in Air: 110 kg/km | |
| Weight in Sea Water: -22.3 kg/km | |
| Min. bend radius: 22.5mm | |
| Standard Color: Yellow | |
| Hose Fitting: #4 JIC | |
| Communication Cable Specifications | Screened Pairs: 2 x 0.5 mm2 |
| Polyester Strength Braid: 500 kg minimum break strength | |
| Red polyurethane outer sheath: 1.7 mm nominal thickness | |
| Weight in Air: 128 kg/km | |
| Weight in Sea Water: 25 kg/km | |
| O.D. mm: 11.0 mm | |
| Standard Color: Red | |
| Video Cable Specifications | Braided Kevlar strength member (1200 lbs) |
| Weight in Air: 170 kg/km | |
| Weight in Sea Water: 35 kg/km | |
| Conductors: 12 ea. #20 awg; 1 RG-59 Coax | |
| Temp. rating -40 to +90C. | |
| 300 volt rated conductors. | |
| Standard Color: Green | |

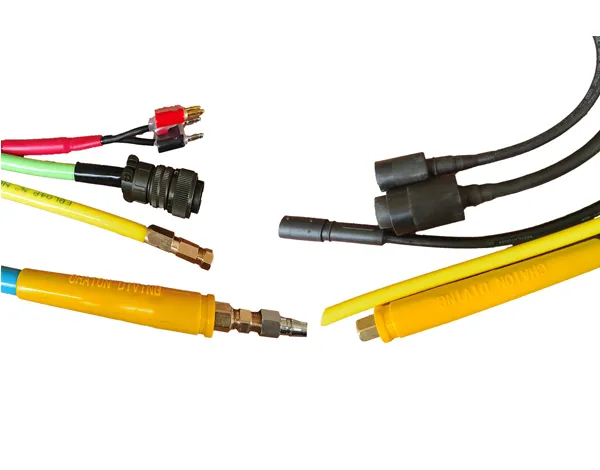

| Connections：5-Pin RMK Camera Connector，3-Pin RMG Light Connector，8-core aviation plug | |
| Total weight | 667 kg/km |
Integrated Neutrally Buoyant Design.
Superior Abrasion & Chemical Resistance.
Unparalleled Communication Clarity.
Robust, Kink-Resistant Air Supply.
Easy Maintenance & Deployment.
Customizable Lengths & Terminations.
