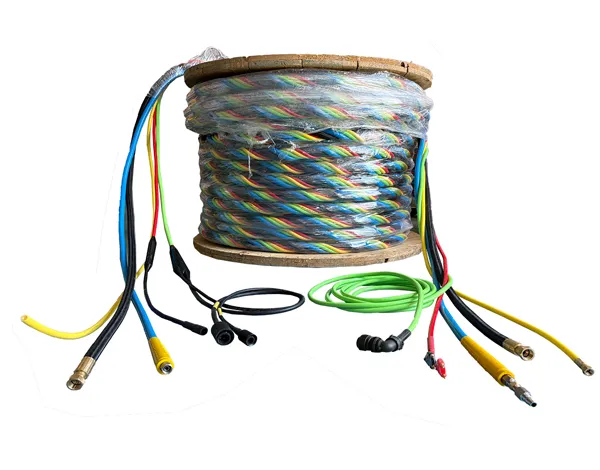

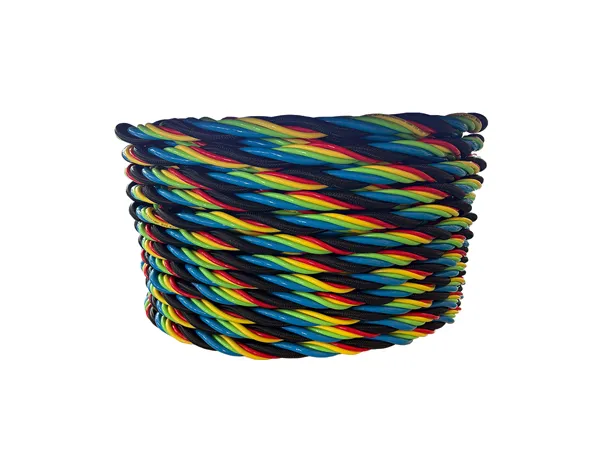

The SEAM Diving Series umbilicals are designed for professional surface-supplied diving operations in cold weather, where reliability, clarity, and performance are critical.This streamlined umbilical integrates a high-pressure air hose , a robust communications cable, a depth hose, a video cable,and a hot water hose into a single neutrally buoyant assembly, designed to reduce drag and minimize diver fatigue.
Ideal for commercial diving, aquaculture, search and recovery, and scientific research, the SEAM umbilical serves as the critical lifeline, delivering breathable air and crystal-clear communication from the surface support system to the diver, a premium offering in diver umbilical for sale. Built to withstand harsh marine environments, it offers exceptional abrasion resistance and durability, ensuring mission success and diver safety dive after dive.
Trust the SEAM Dive Series Umbilical—the definitive choice for professionals who demand uncompromising quality beneath the surface.

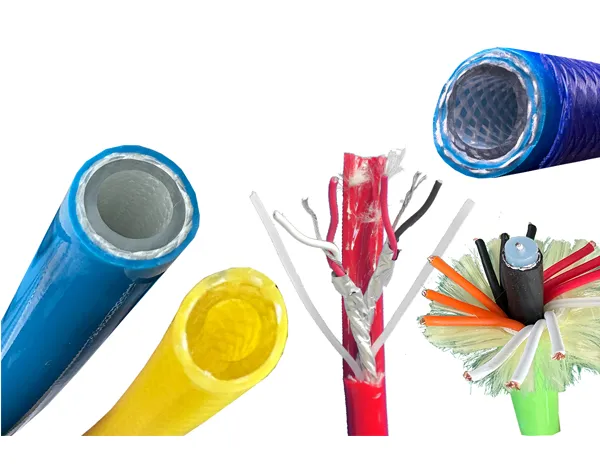

| Mobel | UMB005 |
| Composition | 3/8 Inch Breathing Air Hose |
| 1/4 Inch Pneumo Hose | |
| 1/2 Inch Hot Water Hose | |
| Video Cable | |
| Communication Cable | |
| 3/8 Inch Breathing Air Hose Specifications | Max Working Pressure: 500 PSI / 35 bar |
| Minimum Burst Pressure: 2000 PSI / 140 bar | |
| Nominal Bore: 3/8 inch / 9.5 mm | |
| Outside Diameter: 18.5 mm | |
| Weight in Air: 257 kg/km | |
| Weight in Sea Water: -57.3 kg/km | |
| Minimum Bend Radius (Static): 44.5 mm | |
| Tensile Rating: 100 kg | |
| Standard Color: Blue | |
| Hose Fitting: #6 JIC | |
| 1/2 Inch Hot Water Hose Specifications | Max Working Pressure: 500 PSI / 35 bar |
| Minimum Burst Pressure: 2000 PSI / 140 bar | |
| Nominal Bore: 1/2 inch / 12.5 mm | |
| Outside Diameter: 22.5 mm | |
| Weight in Air: 290 kg/km | |
| Weight in Sea Water: -57.3 kg/km | |
| Minimum Bend Radius (Static): 105 mm | |
| Tensile Rating: 100 kg | |
| Standard Color: Blue | |
| 1/4 Inch Pneumo Hose Specifications | Max Working Pressure: 400 PSI / 27.5 bar |
| Minimum Burst Pressure: 1600 PSI / 110 bar | |
| Nominal Bore: 1/4 inch / 6 mm | |
| Outside Diameter: 12.2 mm | |
| Weight in Air: 110 kg/km | |
| Weight in Sea Water: -22.3 kg/km | |
| Min. bend radius: 22.5mm | |
| Standard Color: Yellow | |
| Hose Fitting: #4 JIC | |
| Communication Cable Specifications | Screened Pairs: 2 x 0.5 mm2 |
| Polyester Strength Braid: 500 kg minimum break strength | |
| Red polyurethane outer sheath: 1.7 mm nominal thickness | |
| Weight in Air: 128 kg/km | |
| Weight in Sea Water: 25 kg/km | |
| O.D. mm: 11.0 mm | |
| Standard Color: Red | |
| Video Cable Specifications | Braided Kevlar strength member (1200 lbs) |
| Weight in Air: 170 kg/km | |
| Weight in Sea Water: 35 kg/km | |
| Conductors: 12 ea. #20 awg; 1 RG-59 Coax | |
| Temp. rating -40 to +90C. | |
| 300 volt rated conductors. | |
| Standard Color: Green | |
| Connections：5-Pin RMK Camera Connector，3-Pin RMG Light Connector，8-core aviation plug | |
| Total weight | 1070 kg/km |
Integrated Neutrally Buoyant Design.
Superior Abrasion & Chemical Resistance.
Unparalleled Communication Clarity.
Robust, Kink-Resistant Air Supply.
Easy Maintenance & Deployment.
Customizable Lengths & Terminations.
